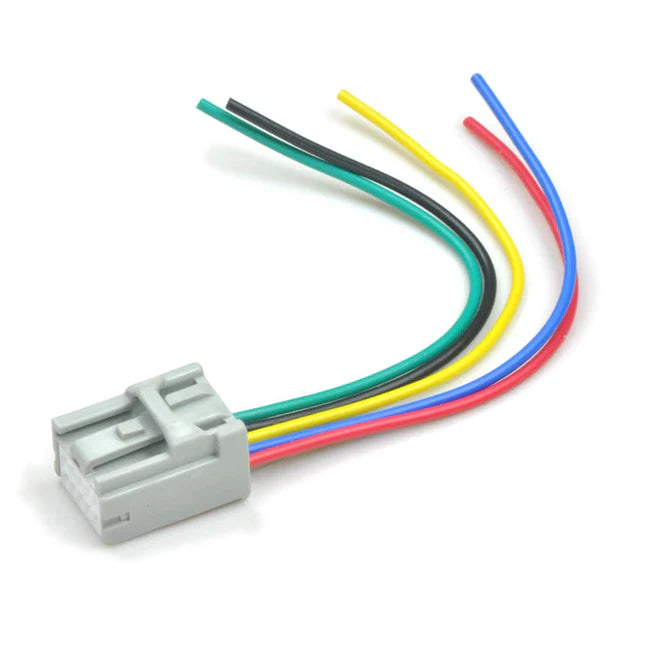

Switch connector only (100mm in length) suitable for use with the Ford Ranger PX1 and second-generation Mazda BT50 October 2011 onwards OEM driving light switch.
Wiring instructions:• Red wire - Illuminates the blue indicator on the switch (when in the on position) for this to function connect with the yellow wire• Blue wire - 12v in from high beam circuit• Yellow wire - 12v switched out, connect with the red wire, then connect to relay {87}• Black wire - Connect to earth circuit (negative)• Green wire - From 12v dash light circuit (illuminates Roo logo or image)
Vehicle Compatibility
Make Model Compatible From Compatible To
Ford Ranger PX 2011 2015
Mazda BT50 2011 2017
