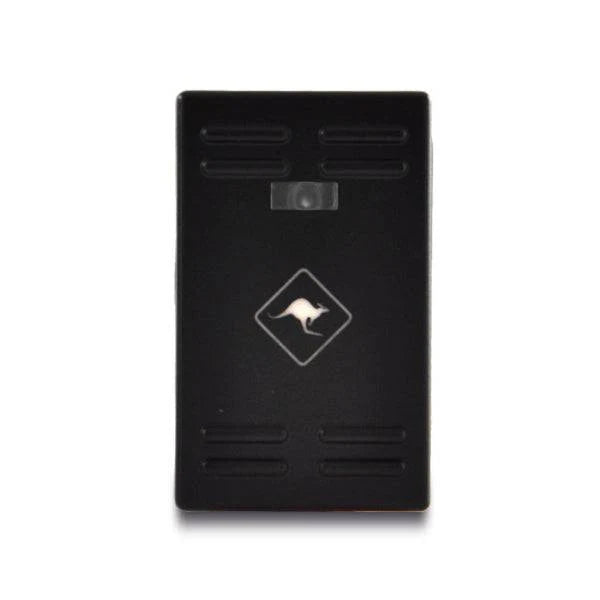

This switch is to suit Ford Ranger PX1 and is an exact fit into the original business card holder (this is not suitable for the PX2) and also suitable for second-generation Mazda BT50 from October 2011.
The Roo logo illuminates white via the dash light circuit, once the switch is pushed on, the upper clear window illuminates blue.

Single switched input
LED illumination
Suitable for positive switched vehicles only
Harness included (300mm in length)
Current rating 3 amps @ 12v
To remove business card holder from vehicle: First remove the fuse panel cover located next to the driver’s side door, then dislodge the lower trim panel located next to the fuse panel that has just been removed. This will allow you access to the back of the switch blank (business card holder), apply light pressure to the top then the bottom to dislodge from within the dash. DO NOT try and remove the switch blank by using a screw driver this will result in damaging the dash surface.

Make    Model             Year
Ford    Ranger PX    2011 - 2015
Mazda    BT50          2011 - 2017
Vehicle Compatibility
Make    Model    Badge (Variant)    Compatible From    Compatible To
Ford    Ranger           PX                            2011                  2015
Mazda    BT50       1st Gen                       2011                   2017
Mazda    BT50       2nd Gen                      2006                  Nov 2020
