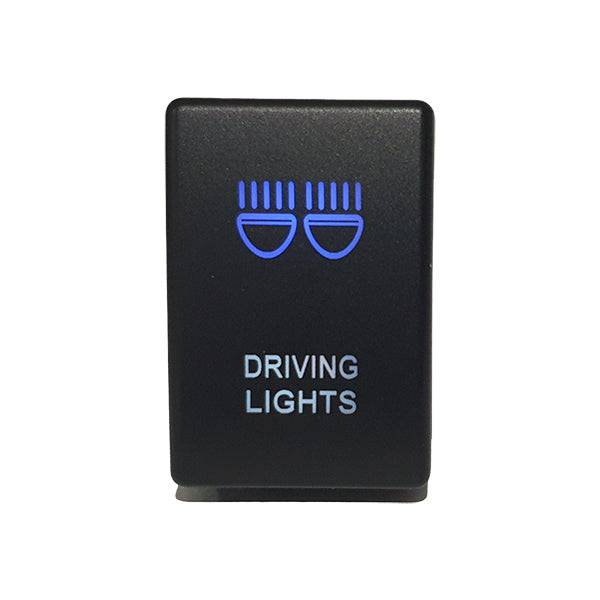

The text illuminates white via the dash light circuit. Once the switch is pushed on, the upper icon window illuminates blue.

This factory-style driving light switch is designed specifically to fit 3rd Generation vehicles only and will fit into the original dashboard, (right-hand side of the steering wheel) without any modification.

Specifications include:

Switch cut out size is 20mm x 31mm
Housing material black PVC
Single switch input
Dual LED illumination
Suitable for positive switched vehicles only
Harness included (300mm in length)
Current rating 3 amps @ 12v (must be used in conjunction with a relay)


Harness compatibility:

Compatible with Lightforce Single Switch 8 Pin Adaptor # SWADP4. This enables direct connection to Lightforce Harness part number STRIKERLEDHARN (Striker LED Harness).

Vehicle Compatibility
Make    Model    Compatible From    Compatible To    Fitment Location
Isuzu    D-max              2013                      2020               upper dash
Isuzu    D-max              2020                      2024
Isuzu    Mux                  2013                      2024
Mazda  BT50                 2020                      2023
Holden  Colorado        2012                       2016               upper dash
