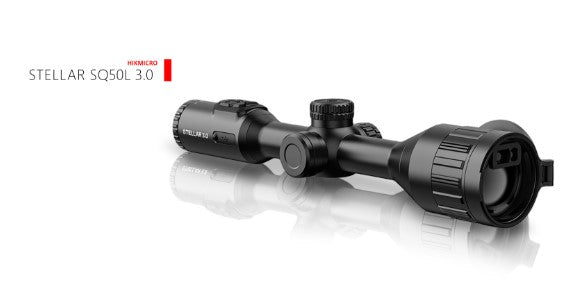

HIKMICRO STELLAR SQ50L 3.0 Thermal Scope is equipped with a 640 × 512 @12 μm thermal detector, with much higher sensitivity (NETD<15 mK) and the latest image processing algorithm (Image Pro 2.0) and shutterless System (HSIS), ensuring users catch the finest details no matter the weather or light conditions without interruption. With a 2560 × 2560 1.03” OLED larger display, SQ50L 3.0 makes it easier to spot targets quickly and accurately. The built- in lens 1000 m LRF and ballistic calculation contribute to more accurate shooting. The scope is mainly used for field and forest hunting.

Key Features
* 640 × 512 Resolution @12 μm thermal detector
* High sensitivity Thermal Module NETD<15 mK (@25°C, F# = 1.0)
* 50 mm, F1.0 lens with detection range up to 2600 m
* 2560 × 2560 Resolution 1.03-inch OLED display
* HIKMICRO Shutterless Image System (HSIS)
* Built-in lens laser rangefinder up to 1000 m, with ballistic calculation
* Rechargeable internal batteries and external battery, 9h continuous operation
* High shock resistance up to 1000 g/0.4 ms

Specification
Laser Rangefinder
* LRF Module in Lens: Yes
* Safety Class for Laser: Class 1
* Wavelength: 905 nm
* Max. Measuring Range: 1000 m
* Measurement Accuracy: ±1 m
* Min. Measuring Range: 10 m

Thermal Module
* Image Sensor: VOx Uncooled Focal Plane Arrays
* Max. Resolution: 640 × 512
* Frame Rate: 50 Hz
* Pixel Interval: 12 μm
* Response Waveband: 8 μm to 14 μm
* NETD: Less than 15 mK (@25°C, F# = 1.0)
* Lens (Focal Length): 50 mm, F1.0
* Focus Mode: Focus Ring
* Detection Range: 2600 m
* Min. Focusing Distance: 5 m
* Magnification: 3.6× to 26.6×, Support 1× step value of continuous zooming
* Field of View(H×V), Degrees / m @100 m: 8.8° × 7.0°/15.4 m × 12.3 m

Image Display
* Display: 2560 × 2560, 1.03-inch OLED
* Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
* Exit Pupil: 6 mm
* Eye Relief: 45 mm
* Diopter (Range): -4D to 4D
* Brightness Adjustment: Yes
* Tone Adjustment: Cold, Warm
* Contrast Adjustment: Yes
* Zoom Pro: Yes
* Image Pro 2.0: Yes
* HSIS (HIKMICRO Shutterless Image System): Yes

System
* Record Video: On-board Video Recording
* Capture Snapshot: Yes
* Audio Recording: Yes
* Recoil-Activation Recording: Yes
* Standby Mode: Yes
* Storage: Built-in EMMC (64 GB)
* PIP: Yes
* Hotspot: Yes
* Hot Track: Yes
* Distance Measurement: Yes
* Zeroing Profiles: 5
* Freeze Zeroing: Yes
* Max. Recoil: 1000 g/0.4 ms
* Ballistic Calculation: Yes
* Local Album: Yes

Power Supply
* Battery Type: Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external)
* Battery Operating Time: 9 hours continuous running (@-25°C, Zoom Pro, LRF on)
* Type-C Power Supply: DC 5 V/2 A, USB Type-C interface supports QC3.0 * Only the built-in battery will be charged via the type-C cable. Use the battery charger to charge the external battery.

General
* Protection Level: IP67
* Mounting Standard: 30 mm
* Dimension: 422.5 mm × 88.4 mm × 74.5 mm
* Working Temperature: -30°C to 55°C (-22°F to 131°F)
* Weight: 860 g without external battery
* Center Height: 36 mm
