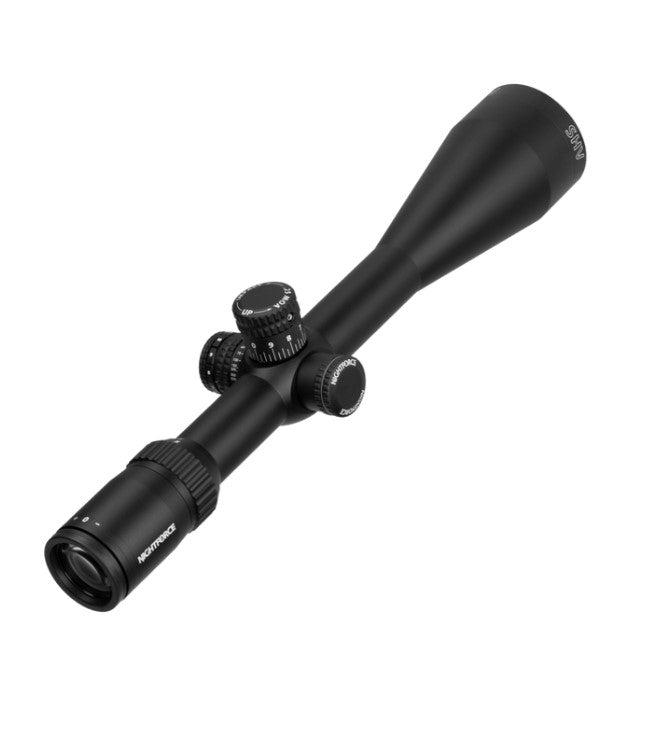

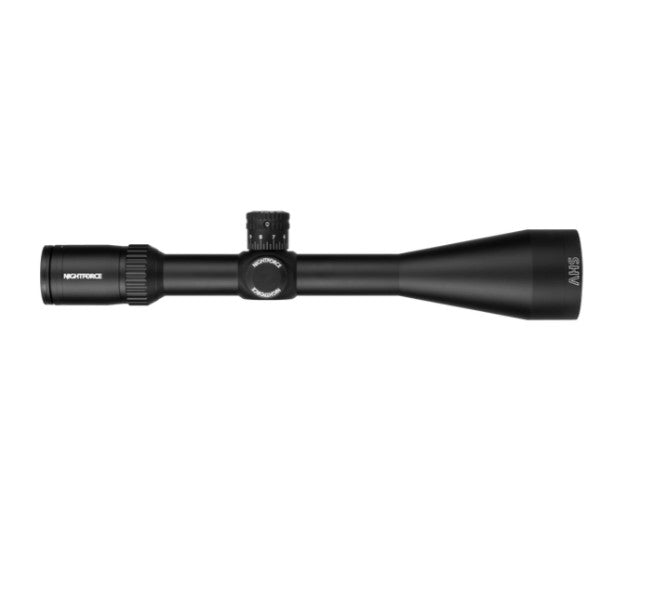

Nightforce SHV 4A 5-20x56 ZeroSet .250 MOA Center Only Illumination
The Nightforce SHV 5-20x56mm is the largest in the SHV family and ready for long range targets of all types. With the large diameter objective and adjustable parallax, the 5-20x56mm provides shooters with exceptional clarity and crisp images at any distance. The positive clicks of the ZeroSet elevation turret provide reliable tracking and 80 MOA of travel when precision matters most.
Magnification Range: 5-20x
Focal Plane: Second
Overall Length: 15.2 in/386 mm
Weight: 29.1 oz/825 g (non-illuminated) 30.5 oz/865 g (illuminated)
Body Tube Diameter: 30 mm
Mounting length: 6.5 in/165 mm
Elevation Feature: ZeroSet™
Click Value: .250 MOA
Internal Adjustment Range:
E: 80 MOA
W: 50 MOA
Parallax Adjustment: 25 yd/ 23 m - 8
Field of View (@100 yd/m): 5x: 17.9 ft/6.0 m 20x: 5.0 ft/1.7 m
Eye Relief: 3.5 in/90 mm
Exit Pupil: 5x: 8.7 mm 20x: 2.5 mm
Illumination: Analog (Optional)
Power Throw Lever: Accessory
Reticle: 4A -Centre only illumination
