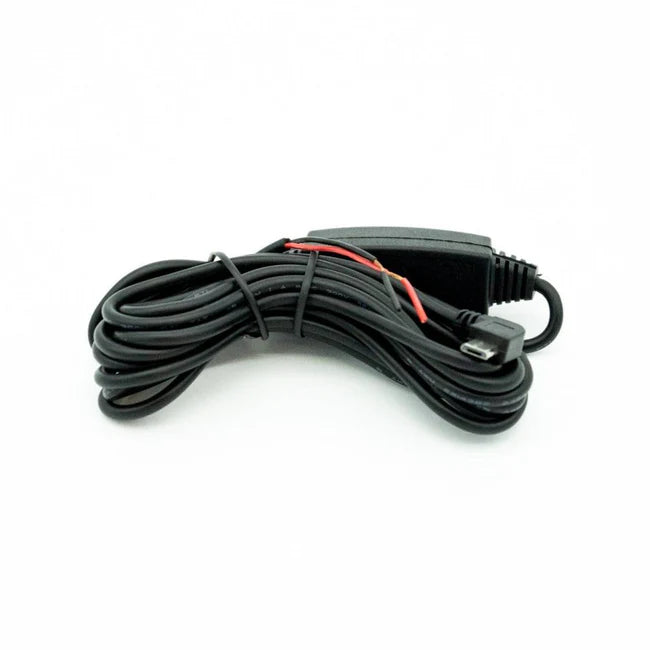

These inline multi voltage 12-24V DC to 5V DC Mini 5-Pin USB and Micro 5-Pin USB step down voltage converters are suitable for many mobile devices, in car DVR’s and GPS units.
Features:
Protection: Over-current, over-temperature, low voltage & short circuit protection (on output side)
Connector: Mini 5-Pin USB or Micro 5-Pin USB available
Low power consumption, high conversion rate (Maximum conversion rate 96%)
Fully encapsulated circuit board
Material: PVC
Colour: Black
Specifications:
Input voltage: 12V – 24V DC
Output voltage: 5V DC – 2.1 A
Low voltage cut off: 11.5V
Operating temperature: -40° Celsius to +85° Celsius
Dimensions: 74mm (L) x 22mm (W) x 16mm (H)
Cable length: Approximately 3.0M (300mm to voltage converter – 2700mm from voltage converter to USB connector)
Simple two wire hook up, red wire positive (+) black wire negative (-)
NOTE: All vehicle accessories should be wired through a fuse, recommended minimum fuse rating 2A (not included)
