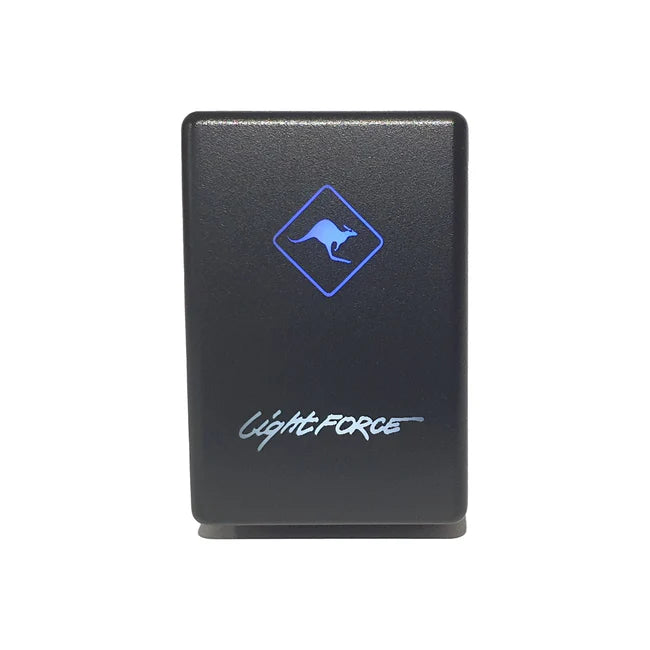

The text illuminates white via the dash light circuit. Once the switch is pushed on, the upper icon window illuminates blue.
This factory style switch is designed specifically to fit 3rd Generation vehicles only and will fit into the original dashboard, (right-hand side of the steering wheel) without any modification.
Specifications include:
Switch cut out size is 20mm x 31mm
Housing material black PVC
Single switch input
Dual LED illumination
Suitable for positive switched vehicles only
Harness included (300mm in length)
Current rating 3 amps @ 12v (must be used in conjunction with a relay)
Harness compatibility:
Compatible with Lightforce Single Switch 8 Pin Adaptor # SWADP4. This enables direct connection to Lightforce Harness part number STRIKERLEDHARN (Striker LED Harness).
Vehicle Compatibility
Make Model Compatible From Compatible To
Isuzu D-max 2020 2024
Isuzu Mux 2021 2024
Mazda BT50 2020 2023
