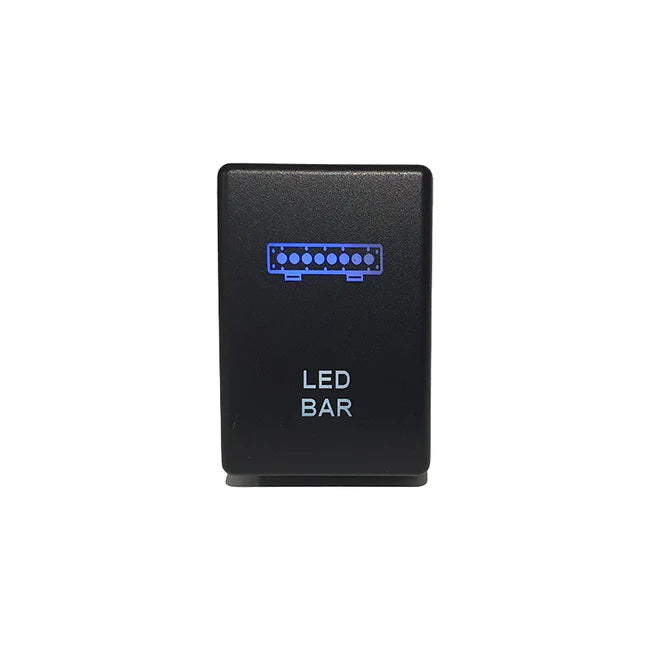

Lightforce Gen 3 D-Max/BT50 LED Bar Switch

$28.00 Sale

The text illuminates white via the dash light circuit. Once the switch is pushed on, the upper icon window illuminates blue.This factory-style LED bar switch is designed specifically to fit...

Available:

In stock

SKU: 9335712035172

Quantity:

- +

Add To Wishlist

$15.00 Australia Wide Shipping

Description

The text illuminates white via the dash light circuit. Once the switch is pushed on, the upper icon window illuminates blue.

This factory-style LED bar switch is designed specifically to fit 3rd Generation vehicles only and will fit into the original dashboard, (right-hand side of the steering wheel) without any modification.

Specifications include:

Switch cut out size is 20mm x 31mm
Housing material black PVC
Single switch input
Dual LED illumination
Suitable for positive switched vehicles only
Harness included (300mm in length)
Current rating 3 amps @ 12v (must be used in conjunction with a relay)

Harness compatibility:

Compatible with Lightforce Single Switch 8 Pin Adaptor # SWADP4. This enables direct connection to Lightforce Harness part number STRIKERLEDHARN (Striker LED Harness).
