When you have limited space or wish to maximise your existing OEM switch locations this dual switch doubles the number of switches you can install, without the need to damage your vehicles dash by cutting additional holes.
Suitable for Toyota Prado 120, pre 2015 model Hilux, 100 Series Landcruiser’s and 70 Series

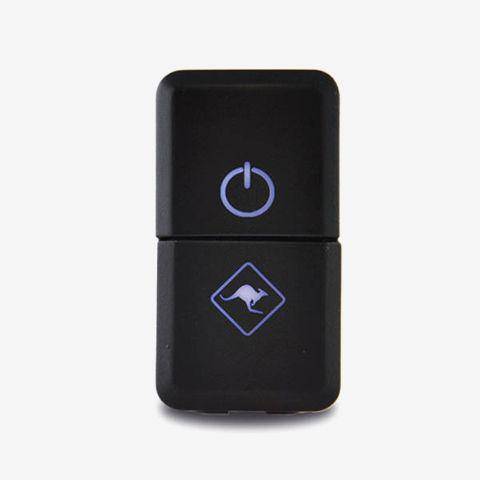

This OEM style switch feature the Lightforce Roo logo and on icon for universal applications available for the following vehicles without any modification to the original dashboard.
Single powered input feeding two independently switched outputs
Dual coloured illumination powered via existing dash light circuit
Suitable for both positive and negative switched vehicles
Harness included (300mm in length)
Current rating 3 amps @ 12v
Australian design patent
Size: 17mm x 35mm
Illumination is only activated when the vehicles dash lights are on, green illumination with switch in the off position with blue illumination when the switch is on.
The switches can function independent of the dash lights, however will not illuminate until the vehicles dash lights are activated. A single input activates both the top and bottom switches, so if you have a series of dual switches they will need to be grouped into lighting (active with Hi beam) or active with a constant power or ACC on power.
The switch must be used in conjunction with a relay as it has a maximum current rating of 3 amps
Vehicle Compatibility
Make Model Compatible From Compatible To
Toyota 100 Series Landcruiser 1998 2007
Toyota 4Runner 2003 2009
Toyota FJ Cruiser 2007 2018
Toyota Fortuner 2005 2014
Toyota HiAce 2005 2013
Toyota Highlander 2001 2007
Toyota Hilux 2005 2014
Toyota Kluger 2001 2007
Toyota Landcruiser 70 (Plastic Dash) Series 1985 2023
Toyota Landcruiser 75 76 78 Series 1985 2020
Toyota Landcruiser 79 (Plastic Dash) Series 1985 2023
Toyota Prado 120 2003 2009
Toyota Tacoma 2005 2011
Toyota Tacoma (Left Side only) 2012 2020
Toyota Tundra (centre console if equipped) 2005 2006
